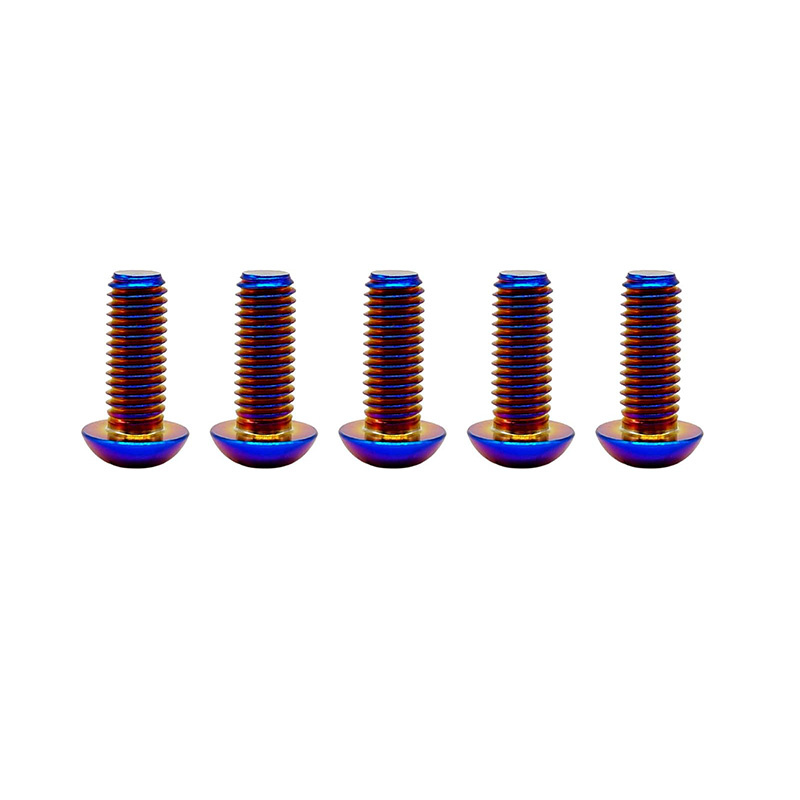

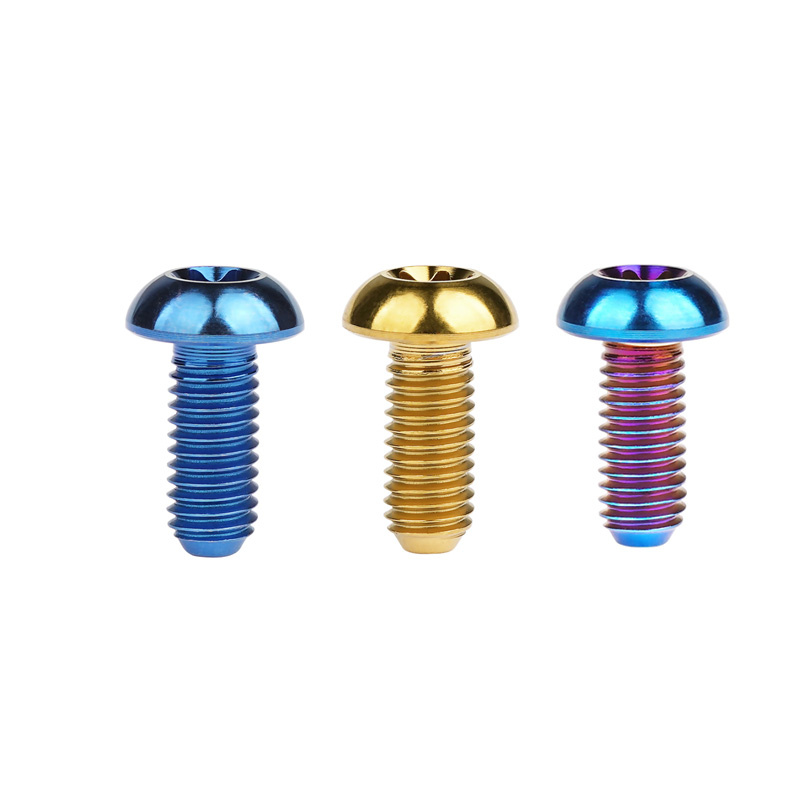

Low Profile Titanium Button Head Bolts for Visible Builds
Key Features
● Low-Profile Round Head
The distinct rounded, low-profile head of titanium button head bolts minimizes protrusion and prevents snagging, offering a clean, sleek look that’s unique to exposed panels and precision assemblies.
● Polished Mirror Curvature
Each bolt is CNC-machined and polished to create a uniform mirror curvature. These lightweight titanium fasteners combine functional smoothness with refined visual appeal, enhancing the tactile quality of show-grade and custom builds.
● Broad Base for Stable Clamping
The engineered broad underside evenly distributes clamping forces, reducing surface indentation. This feature makes titanium button head bolts ideal for carbon, anodized aluminum, and composite assemblies requiring precise alignment.
● Smooth, Colorful Button Head

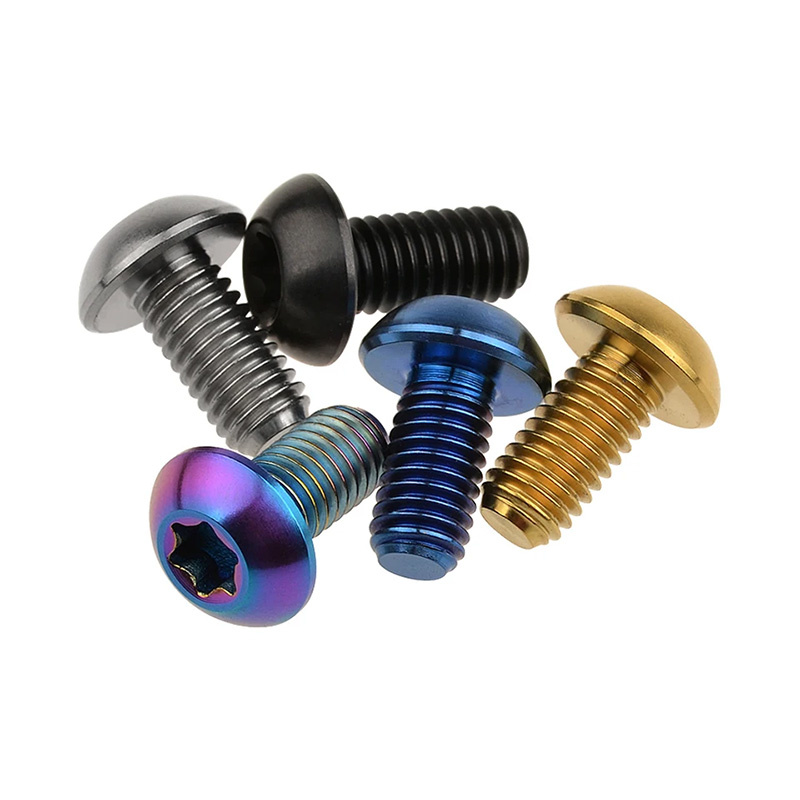

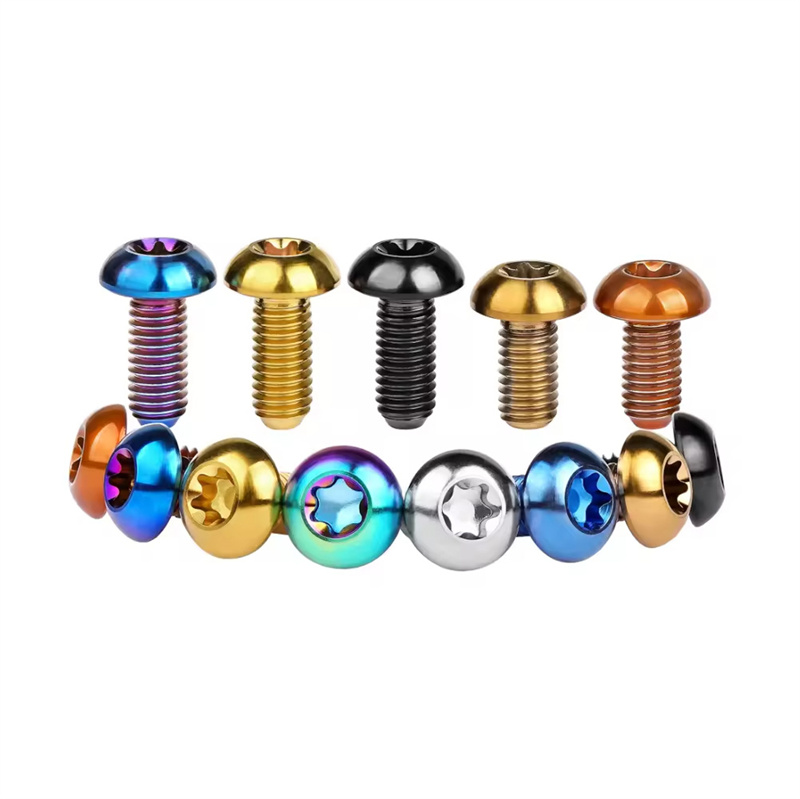

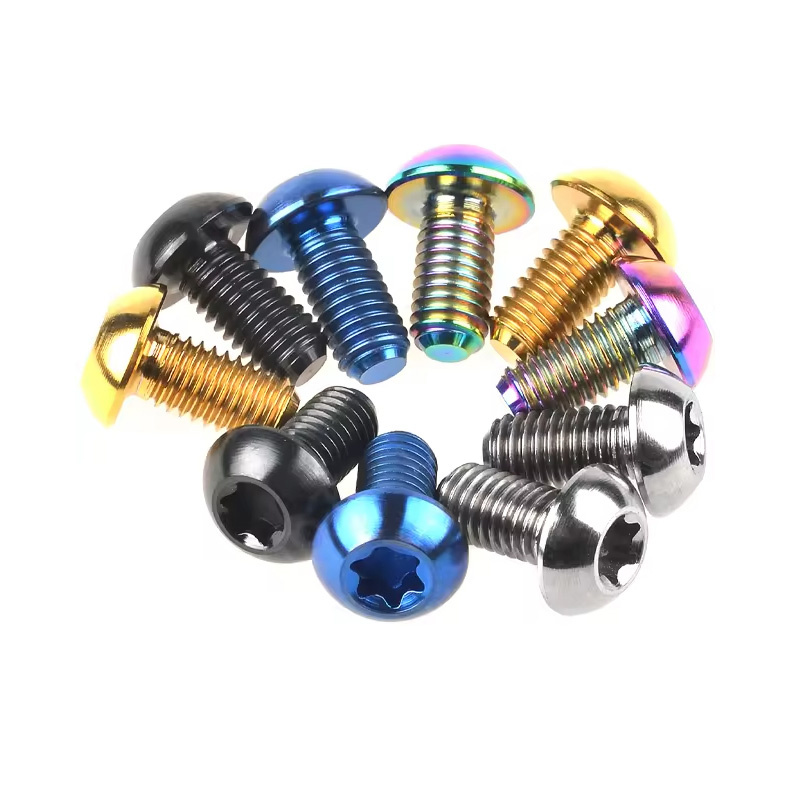

Low-profile rounded heads feature anodized or PVD finishes, protecting adjacent components while adding distinctive style. Ideal for Ti low-profile fasteners in visible, high-end assemblies.
● Optimized Load & Installation Advantage
Titanium Button Head Bolts distribute clamping force efficiently with minimal mass, reducing interference in tight assemblies. Compatible with both Hex and Torx drive tools for installation flexibility.
Installation & Maintenance Guidance
● Start Threading by Hand
Begin installation by hand to protect the low-profile head of titanium button head bolts and prevent scratches or misalignment.
● Inspect High-Vibration Points
Regularly check fasteners in the vibration-intensive assemblies to ensure clamping force, structural integrity, and aesthetic appearance.
Technical Specifications
1. Material & Mechanical Properties
| Parameter | Details |
| Material | Grade 5 Titanium (Ti-6Al-4V) |
| Density | 4.43 g/cm³ |
| Tensile Strength | ≥ 900 MPa |
| Yield Strength | ≥ 830 MPa |
| Hardness | 34–36 HRC |
| Fatigue & Shear | High resistance under light to moderate cyclic load |
| Corrosion Resistance | Excellent (moisture, salt, mild chemicals) |
| Standards Compliance | ISO 7380-1 (Button Head Socket Cap Screws) |
2. Dimensional & Thread Data
| Parameter | Details |

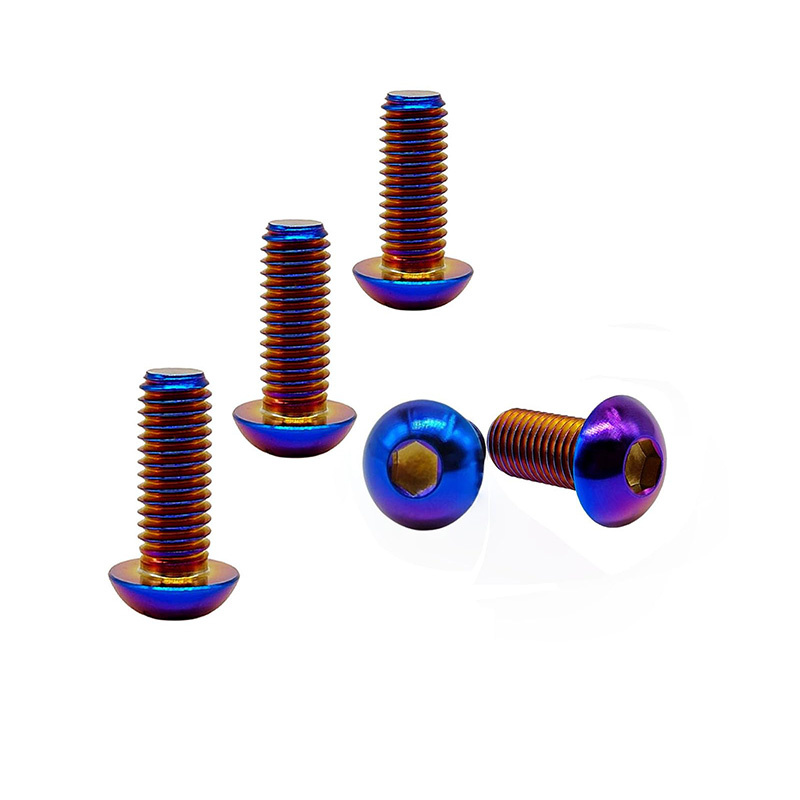

| Diameter Range | M4–M8 |
| Length Range | 8–40 mm |
| Thread Pitch | 0.7–1.25 mm |
| Thread Type | Metric Coarse / Fine |

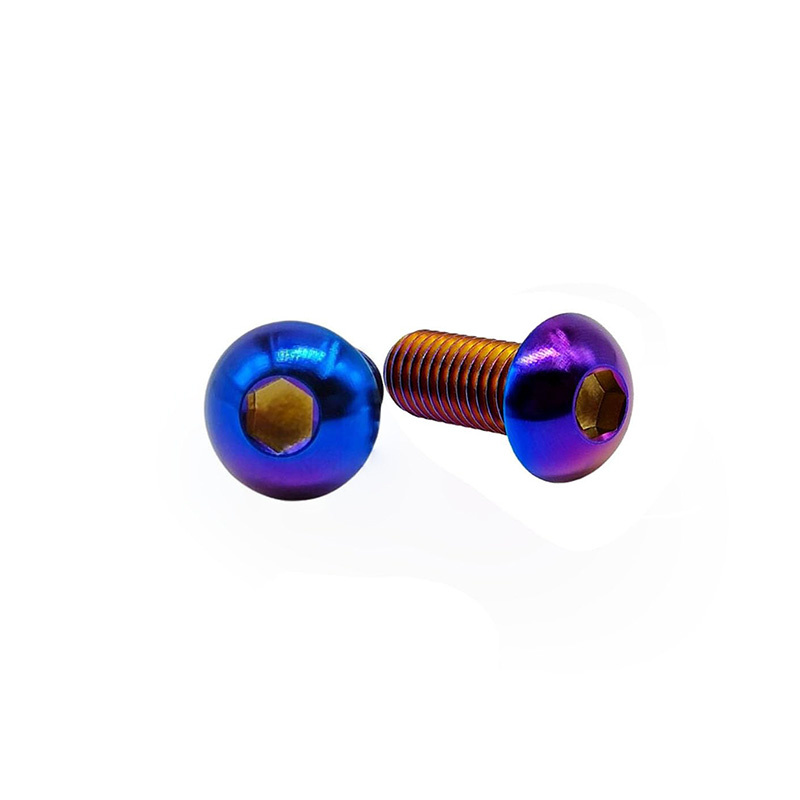

| Drive Type | Hex Socket (internal) |
| Tolerance | ±0.05 mm |
3. Finishing & Customization Options
| Parameter | Details |
| Surface Finish | Natural Titanium / Polished / Anodized / PVD Coating |
| Logo Engraving | Available |
| Packaging | Bulk cartons / Custom retail sets |
| OEM Customization | Supported (thread type, head style, finish, length) |
Application Scenarios
● Motorcycle Trim & Fairings
Suitable for fairings, side covers, and tail panels. Smooth rounded heads prevent scratches and provide secure fastening, making titanium button head bolts (M6–M10 × 20–50 mm) the preferred choice for visible upgrades. Torx drive option is recommended for high-torque applications, ensuring secure fastening in visible or load-sensitive components.
● Bicycles & E-Scooters
Perfect for lightweight mounts like bottle cages or handlebars. These button head titanium screws (M4–M6 × 15–25 mm) reduce weight while maintaining a clean and refined look.
● High-End Custom & Display Vehicles
They are also used as decorative accent bolts on premium motorcycles or cars. Low-profile heads with anodized finishes enhance aesthetics. Common sizes: titanium button head bolts (M6–M8 × 20–40 mm).
● Electronic Enclosures & Instrument Cases
These bolts are suitable for robotic arms, instrument frames, and light machinery. Ti low-profile fasteners (M6–M10 × 20–50 mm) offer secure clamping with minimal added weight.
● Outdoor Gear & Sports Equipment
Ideal for carbon fiber rigs, camera mounts, or climbing gear. These corrosion-resistant, lightweight fasteners (M5–M8 × 15–30 mm) ensure stable, portable assemblies.
Frequently Asked Questions
Q1. Why are low profile titanium button head bolts popular for custom motorcycle builds?
A: Low profile button head bolts create a cleaner appearance on visible motorcycle components. Their rounded head shape reduces the visual impact of exposed fasteners. They are often selected for custom builds where both lightweight performance and detailed appearance are important.
Q2. What applications are suitable for low profile titanium button head bolts?
A: These bolts are suitable for visible areas where appearance and compact design are important. Common applications include fairing panels, bodywork, covers, brackets, and custom display parts. The final selection should consider the required thread size, installation space, and fastening conditions.
Q3. How can I choose the right finish for titanium button head bolts on a custom project?
A: The finish can be selected according to the style and color theme of the motorcycle or component. Titanium button head bolts are available with options such as polished, anodized colors, or other surface treatments. Custom finishes can be evaluated for specific project requirements.
