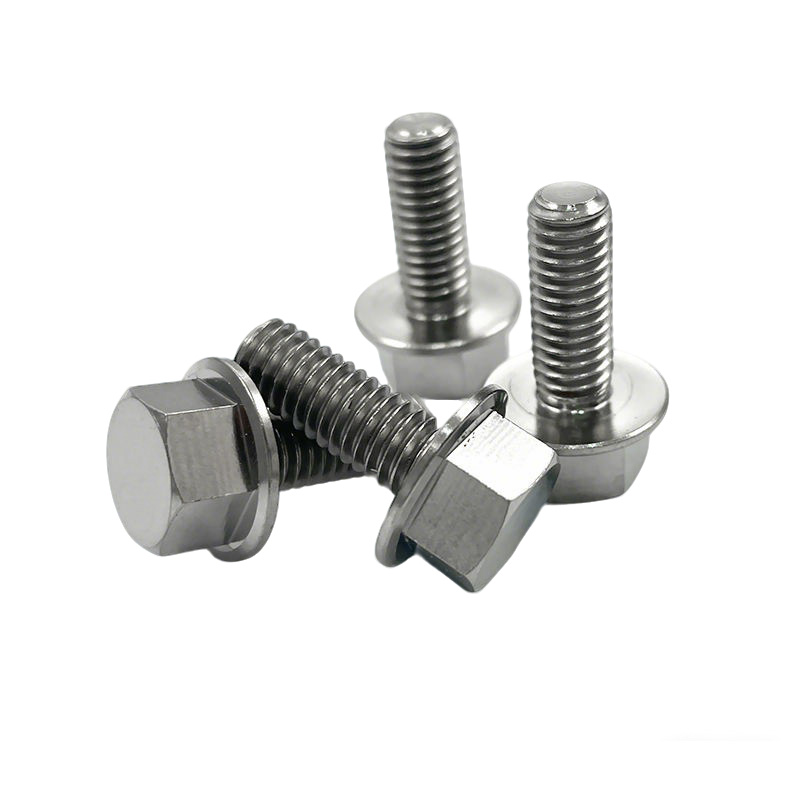

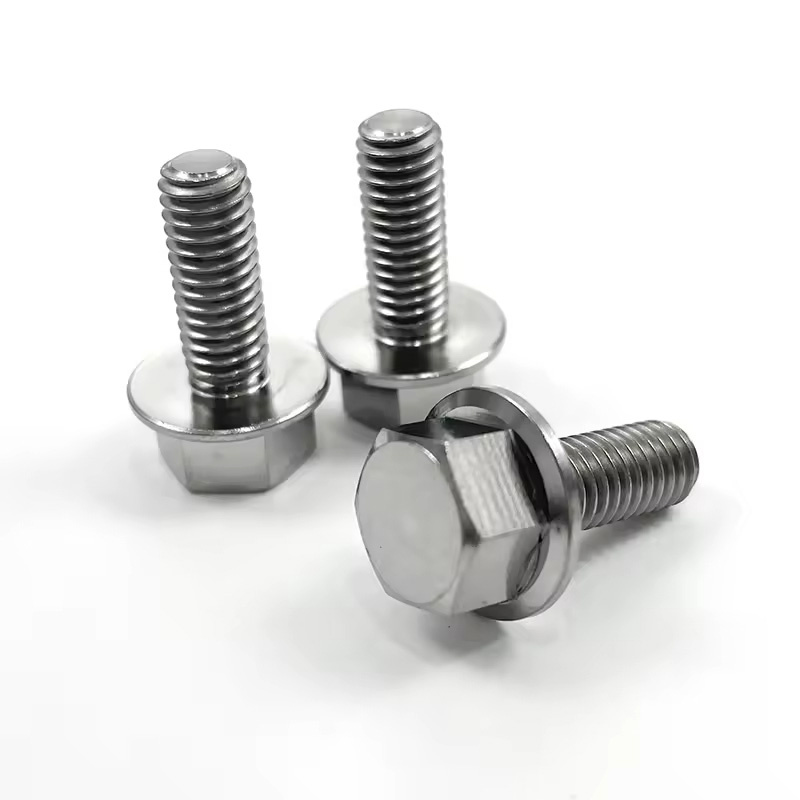

High-Strength China Grade 5 Titanium Flanged Hex Head Bolts - Factory Direct Supplier for Automotive & Industrial Use
Key Features

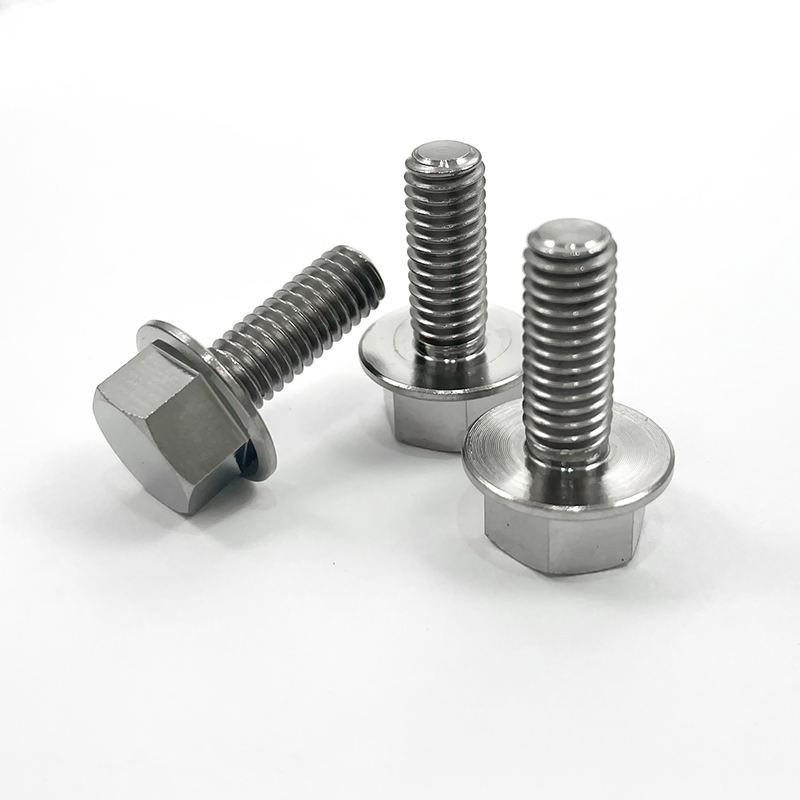

Integrated Flange for Consistent Clamping
Titanium flanged hex head bolts feature a built-in washer flange that evenly distributes clamping force and prevents component damage. They are particularly suitable for engine mounting brackets, brake calipers, and structural joints in motorcycles and automotive assemblies.
Stable Preload & Precision Torque

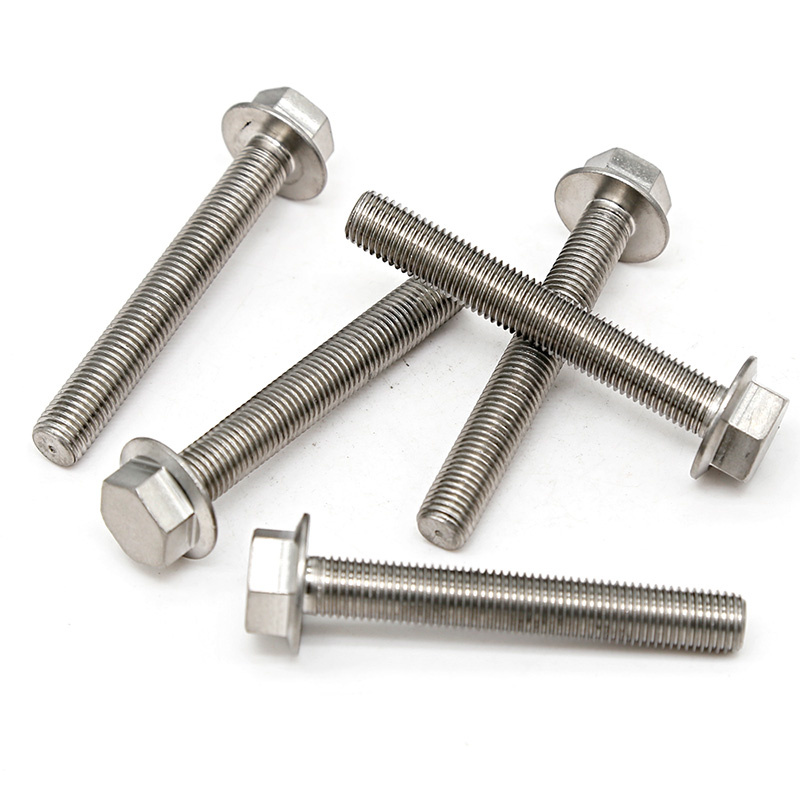

CNC-machined threads (±0.05 mm tolerance) and cold-rolled processing ensure smooth engagement and repeatable clamping. The titanium flanged hex head bolts maintain stable preload in high-vibration conditions such as motorcycle frames or robotic actuators.
Protective Load Distribution
The flange spreads clamping force across soft surfaces like aluminum or magnesium, reducing deformation and enhancing joint longevity in engine covers, intake manifolds, and lightweight chassis components.

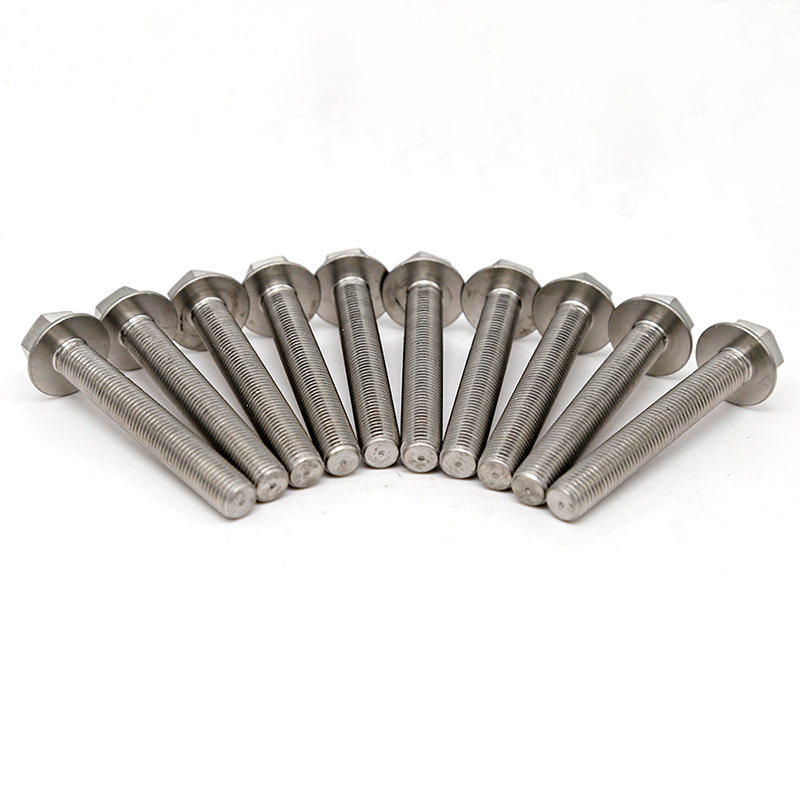

Functional Multi-Color Titanium Finishes
We offer natural, burnt blue, gold, purple, and rainbow anodized finishes. Beyond aesthetics, anodizing improves surface hardness and reduces friction, extending bolt life in demanding environments.
Lightweight Strength for Performance Applications
Crafted from aerospace-grade Ti-6Al-4V, these bolts offer exceptional strength-to-weight ratio, reducing unsustainable mass or structural load. This is critical for motorcycles, e-bikes, and high-performance automotive components.
Installation & Maintenance Guidance
Uniform Flange Pressure
Tighten in a cross-pattern to avoid flange deformation.
Thread Protection
Clean flange underside and mating threads; apply titanium-compatible anti-seize on aluminum surfaces to prevent galling.
Torque Accuracy
Follow calibrated torque specs to maintain secure clamping without over-stressing components.
Technical Specifications
1. Material & Mechanical Properties
| Parameter | Details |
|---|---|

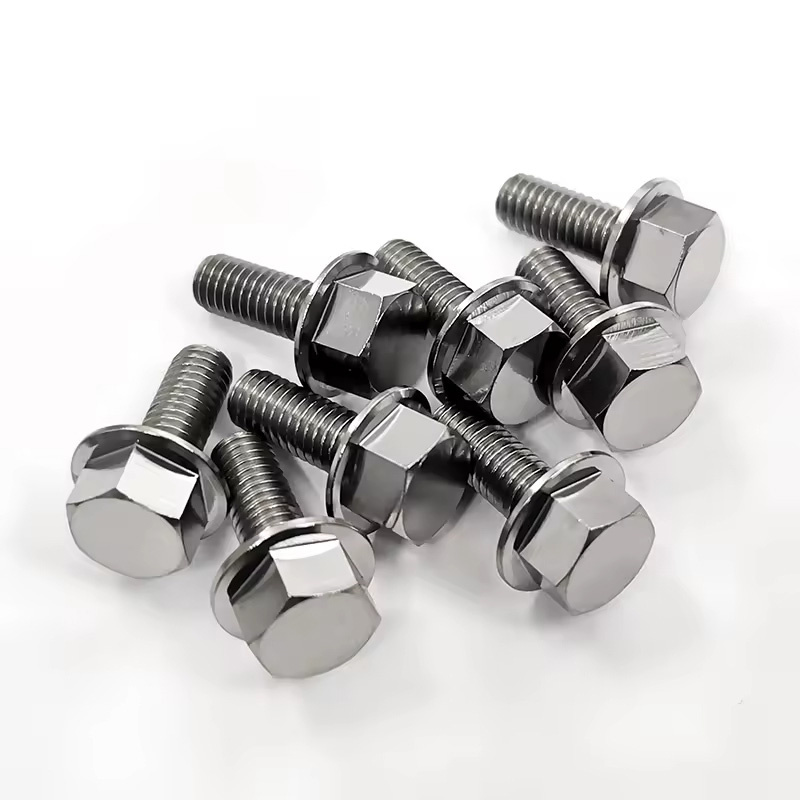

| Material | Grade 5 Titanium (Ti-6Al-4V) |
| Density | 4.43 g/cm³ (≈55% lighter than steel) |
| Tensile Strength | ≥ 900 MPa |
| Yield Strength | ≥ 830 MPa |
| Hardness | 34–36 HRC |
| Fatigue & Shear | High resistance under vibration and cyclic load |
| Corrosion Resistance | Excellent in salt, moisture, and heat environments |
| Standards Compliance | ISO 7380 / DIN 6912 |
2. Dimensional & Thread Data
| Parameter | Details |
|---|---|

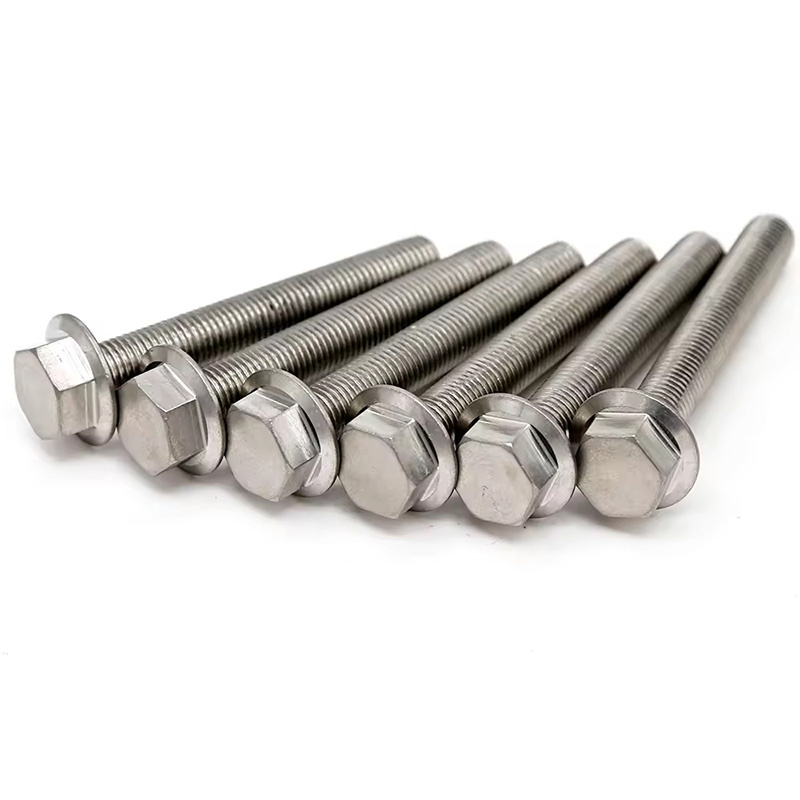

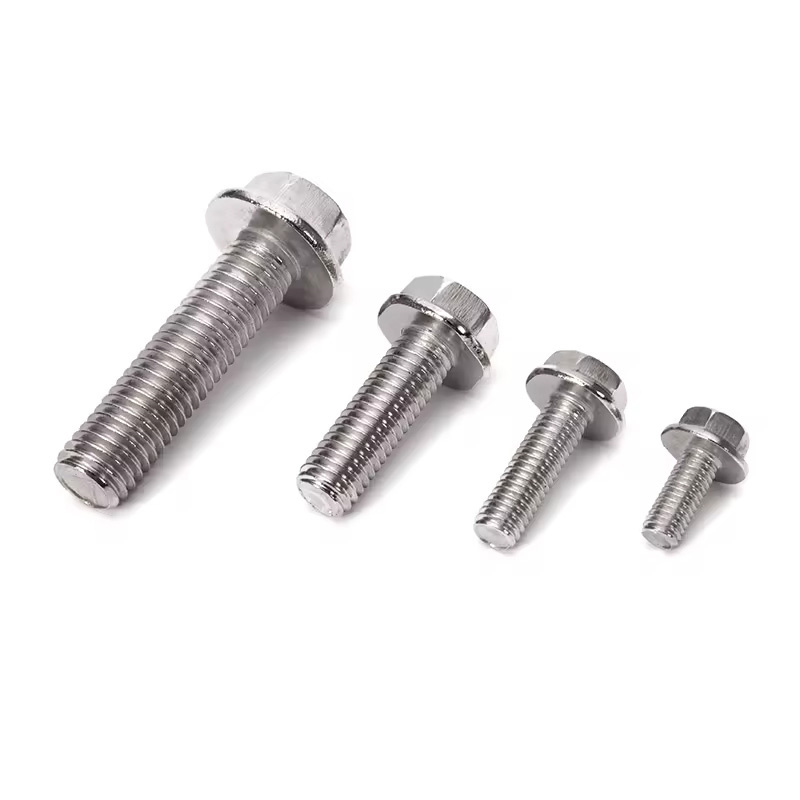

| Diameter Range | M5–M12 |
| Length Range | 10–50 mm (custom lengths available) |
| Thread Pitch | 0.8–1.75 mm |
| Thread Type | Metric Coarse / Fine |
| Drive Type | Hex Head |
| Tolerance | ±0.05 mm |
| Head Dimensions | ISO Standard – refer to table upon request |
3. Finishing & Customization Options
| Parameter | Details |
|---|---|
| Surface Finish | Natural / Anodized / PVD Coating |
| Color Options | Silver / Gold / Blue / Purple / Rainbow |
| Logo Engraving | Available |
| Packaging | Bulk cartons / Custom retail sets |
| OEM Customization | Supported (thread type, head style, finish, length) |
Application Scenarios
Motorcycle Assemblies
Titanium flanged hex head bolts are used in engine brackets (M8–M10), frame joints (M6–M10), and brake calipers (M8). The integrated flange ensures uniform clamping and prevents aluminum or magnesium surface damage. Ideal for racing motorcycles and high-performance street bikes requiring repeated assembly.
Automotive Performance
These bolts are applied in intake manifolds (M6–M8), transmission covers (M8–M10), and lightweight chassis mounts (M10–M12). The flange design and Ti-6Al-4V strength reduce localized stress and maintain reliable clamping under thermal cycling and vibration.
High-End Bicycles & E-Bikes
Commonly used in suspension linkages, e-bike motor mounts, and adapter blocks (M6–M8) where enhanced clamping strength and corrosion resistance are required.
Robotics & Industrial Machinery
Titanium flanged hex head bolts secure actuator housings, modular frames, and robotic joints (M6–M12). The flange ensures stability under high-frequency vibration for repeatable long-term assembly reliability.
Industrial Equipment & Maintenance
They are ideal for pumps, compressors, and enclosures. The universal flange design allows OEMs and distributors to reduce part inventory and simplify assembly management.
Frequently Asked Questions
What are the primary benefits of using titanium flanged hex head bolts?
They feature a built-in washer flange that distributes clamping pressure evenly over soft materials like aluminum and magnesium, protecting parts from deformation while providing excellent strength-to-weight performance.
What grade of titanium is used for these bolts?
These bolts are manufactured from aerospace-grade Grade 5 Titanium (Ti-6Al-4V), offering a high tensile strength of ≥ 900 MPa and yield strength of ≥ 830 MPa.
How do I prevent thread galling during installation?
To prevent galling, especially when threading into aluminum components, clean the mating threads thoroughly and apply a titanium-compatible anti-seize lubricant before assembly.
What color and surface finishes do you offer?
We offer Natural, Anodized, and PVD Coating surface finishes. Standard color options include Silver, Gold, Blue, Purple, and Rainbow.
Can these bolts be customized for OEM applications?
Yes, we support full OEM customization, including custom thread pitches, specific head styles, lengths outside standard ranges, custom finishes, and logo engraving.
