Grade 5 Titanium Dual Drive Race Spec Bolt - Premium Quality from China Suppliers and Factory for Performance Vehicles
Key Features

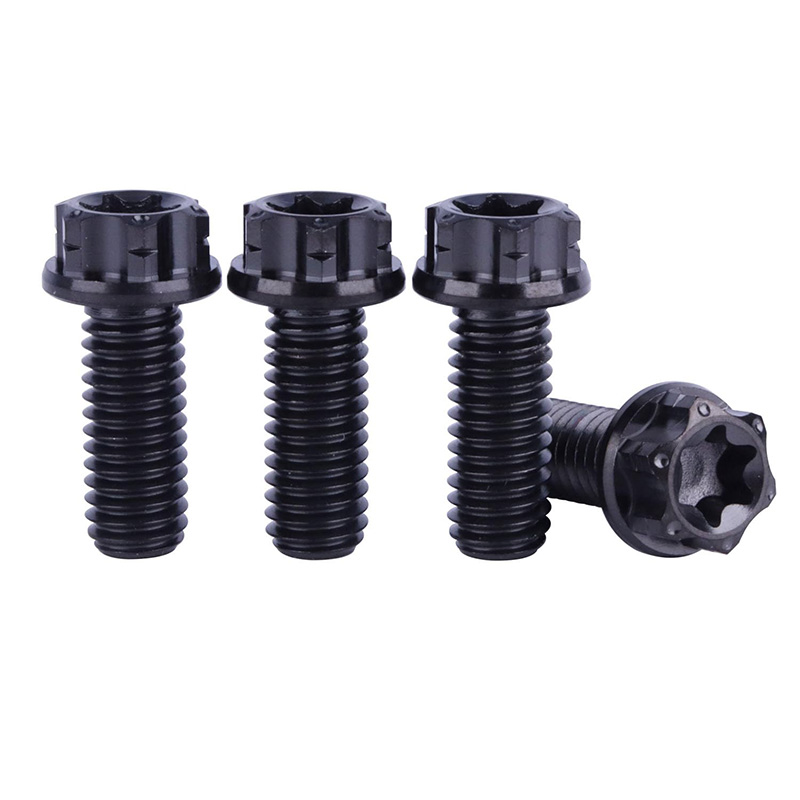

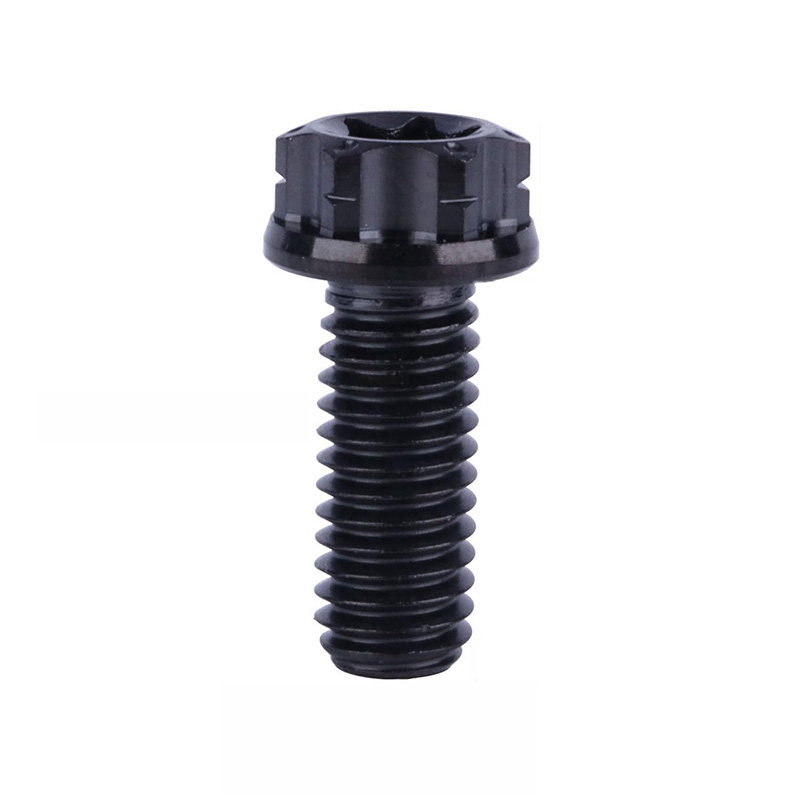

Reliable Dual-Drive Interface
The titanium race spec bolt combines a 12-point outer drive with an internal Torx socket for efficient torque transfer. Even if one interface wears, the other still engages, preventing downtime during repeated maintenance.

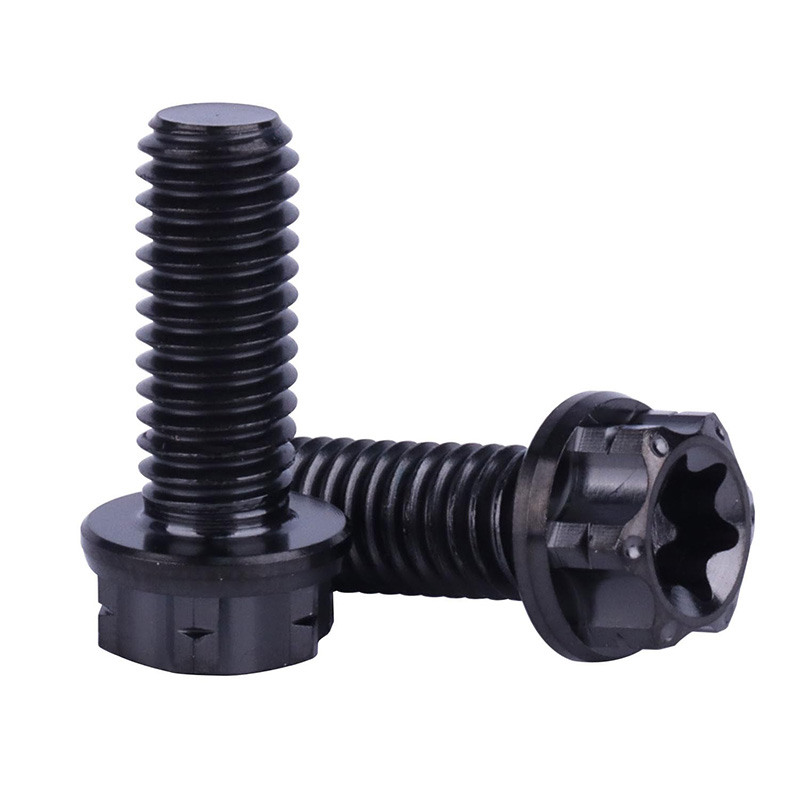

Functional Scalloped Race Head Design
Scalloped cuts and recessed top remove non-structural material while keeping clamp performance predictable. This reduces weight and gives your build a race inspired, precision engineered appearance.
Gr5 Titanium Strength-to-Weight Advantage
Made from Ti-6Al-4V, these titanium race spec bolts match the strength of Grade 10.9 steel while weighing only 55%. Lower unsprung mass enhances handling sensitivity, and making assemblies more responsive.

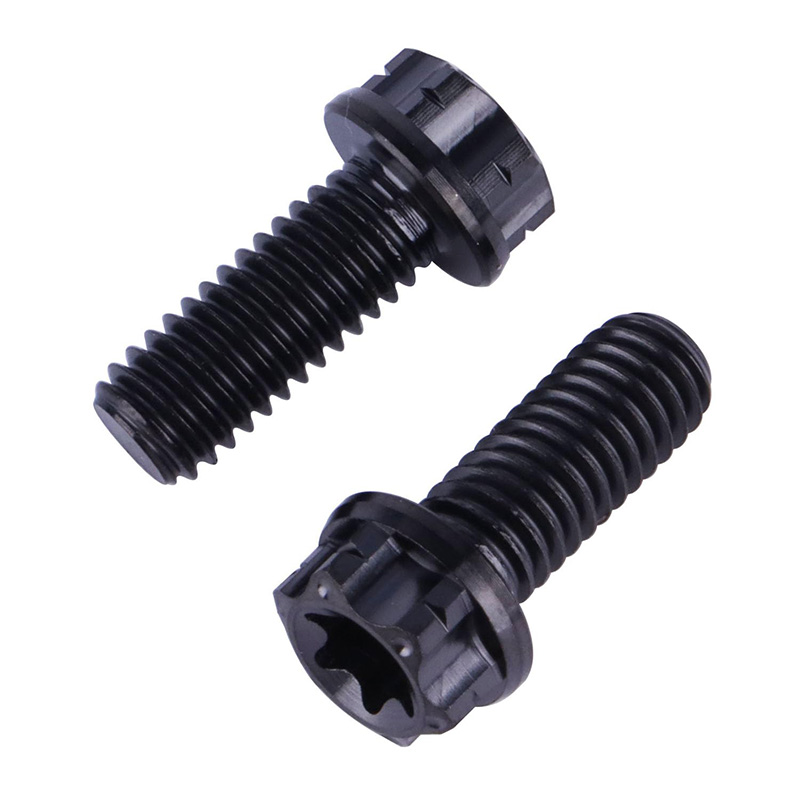

Precision-Engineered Narrow Flange
The compact flange fits tight pockets on calipers, covers, and other precision parts without modifications. It ensures proper seating and reliable clamp contact for consistent assembly.

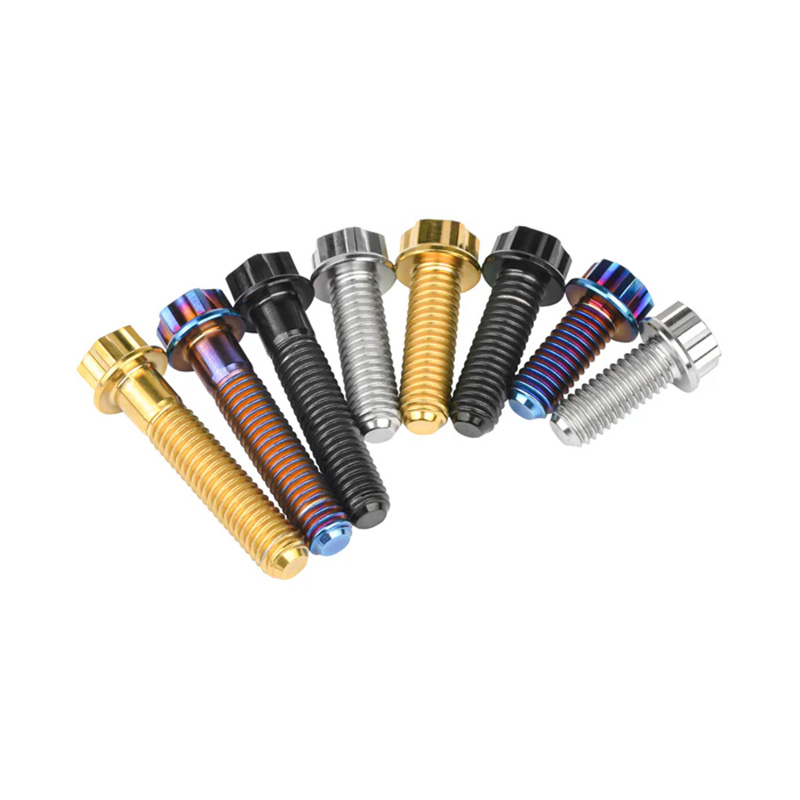

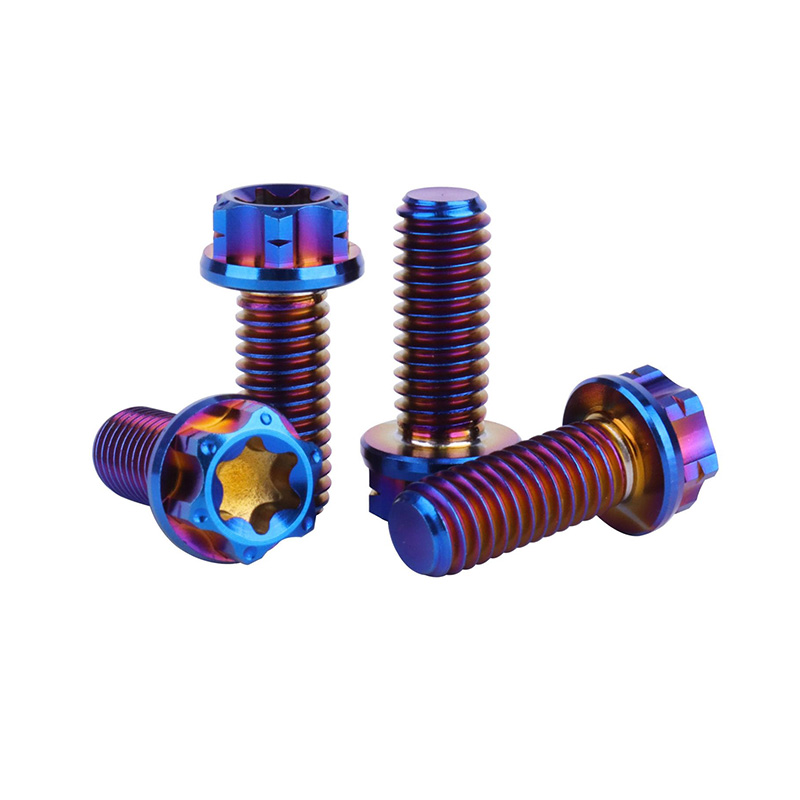

Weather Stable Premium Finish
Titanium naturally resists corrosion in wet and harsh conditions. Hard PVD gold/black and anodized burnt blue/rainbow finishes hold color and resist scratches. Each batch is carefully checked to keep exposed bolts uniform and visually consistent.
Installation & Maintenance Guidance
Dual-Drive Flexibility: Use a 12-point socket for high-torque assembly. The internal Torx is perfect for quick access in restricted spaces.
Torque Recommendation: Set tightening torque to about 85–90% of the equivalent steel bolt value. When a project torque spec is provided, always follow that value.
Technical Specifications
1. Material & Mechanical Properties
| Parameter | Details |
|---|---|
| Material | Grade 5 Titanium (Ti-6Al-4V) |
| Density | 4.43 g/cm³ |
| Tensile Strength | ≥ 900 MPa |
| Yield Strength | ≥ 830 MPa |
| Hardness | 30–36 HRC |
| Corrosion Resistance | Excellent |
| Reference Standards | ISO Metric Thread |
2. Dimensional & Thread Data
| Parameter | Details |
|---|---|
| Diameter Range | M6–M10 (other diameters available upon request) |
| Length Range | 15–60 mm |
| Thread Pitch | M6: 1.0 mm; M8: 1.25 mm; M10: 1.5 mm |
| Thread Type | Metric Coarse |
| Drive Type | 12-Point External + Torx Internal |
| Tolerance | ISO 6g |
3. Finishing & Customization Options
| Parameter | Details |
|---|---|
| Finish Options | Natural / Gold / Black / Burnt Blue / Rainbow |
| Processing Method | Natural Titanium / Anodized / PVD Coating |
| Logo Engraving | Available |
| Packaging | Bulk cartons / Custom retail sets |
| OEM Customization | Supported (thread type, head style, finish, length) |
Application Scenarios
1. Motorcycle Performance & Maintenance
● Brake Calipers & Disc Rotors
The titanium race spec bolt secures caliper brackets and rotor carriers with precise torque. M6–M8 bolts in 20–40 mm lengths allow repeated service without slipping, ensuring reliable braking and smooth maintenance.
● Engine Covers & Precision Panels
Used on clutch covers, generator housings, and compact side cases. Its narrow flanges fit tight counterbores and keep bolts neatly aligned. These titanium race spec bolts provide easy maintenance while preserving a sleek mechanical look.
2. Performance Automotive Engine Bay
● Exposed Mounting Points
Applied on intake manifolds, valve covers, and exposed mounting points. M6–M10 sizes match threaded bosses and sit neatly in tight assemblies. The dual-drive interface supports repeated removal while keeping components aligned and visually consistent.
3. High-End Bicycle & Racing Components
● Crank & Brake Sub-assemblies
Selected for crank mounts and brake system sub-assemblies requiring accurate tool engagement. The drive design simplifies disassembly during seasonal maintenance or performance tuning, keeping connections secure.
Frequently Asked Questions
Q: What are the benefits of the dual-drive interface on these titanium race spec bolts?
A: The combination of a 12-point outer drive and an internal Torx socket ensures efficient torque transfer. If one drive interface experiences wear, the other interface can still engage, preventing maintenance downtime.
Q: How does the weight of Grade 5 Titanium compare to standard steel bolts?
A: Grade 5 Titanium (Ti-6Al-4V) matches the strength of Grade 10.9 steel while weighing only 55% of it. This reduction in unsprung mass enhances handling sensitivity and component responsiveness.
Q: What torque settings should I use for installation?
A: We recommend setting the tightening torque to approximately 85–90% of the equivalent steel bolt value. If a specific project torque specification is provided, you should always prioritize and follow that value.
Q: Are these bolts highly resistant to harsh environments and corrosion?
A: Yes, Grade 5 Titanium naturally resists corrosion in wet and harsh environments. Additionally, the premium PVD and anodized finishes (Gold, Black, Burnt Blue, Rainbow) provide scratch resistance and ensure long-lasting color stability.
Q: Can I request custom sizes, finishes, or OEM logo engraving?
A: Yes, OEM customization is fully supported. We offer options for custom thread types, head styles, lengths, surface finishes, and custom logo engraving upon request.
